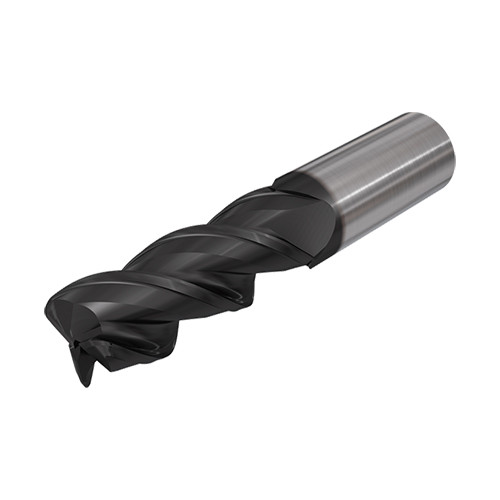

ECAI-B3 1-1.5CR0-4EC IC1508
DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials.

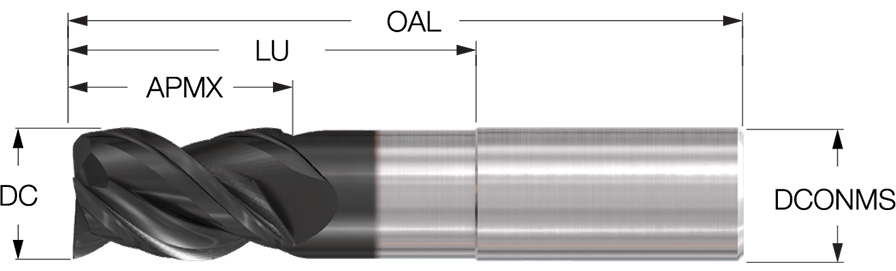

| Cutting Diameter (DC) | 1″ | Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC1508 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | DLC | Maximum Feed per Tooth (fz(max)) | 0.01 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.004 ″/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 1-1/2″ | Decimal Equivalent | 1″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
Product Features
| Family Description | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. | Country of Origin | USA |
