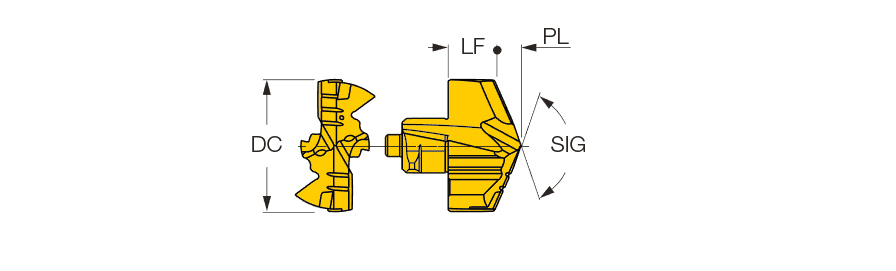

| Cutting Diameter (DC) | 0.642″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.354″ |
| Grade | IC908 | Point Length (PL) | 0.12834″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 130 Degrees |
| Protruding Length (LPR) | 0.354″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 16.0 | Body Material | Carbide |
| Functional Length (LF) | 0.226″ |
Product Features
| Family Description | Exchangeable chip splitting drilling heads for DCN drills, for machining ISO M and ISO P materials . Feature chip splitting notches on the cutting edge and an impressed chip breaker. | Country of Origin | Israel |
| Remarks | Drilling head equipped with chip breaker and chip splitter |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.035
