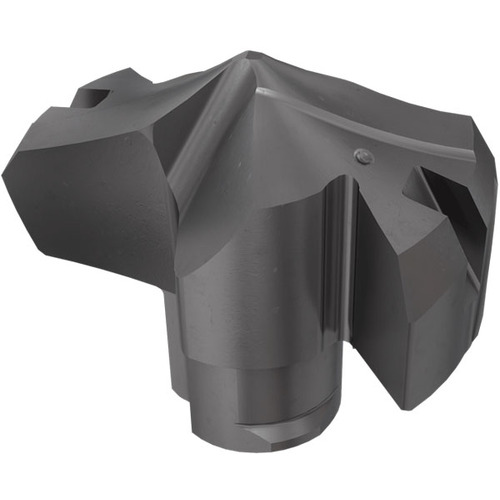

HCP 0445-IQ IC908
Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials.

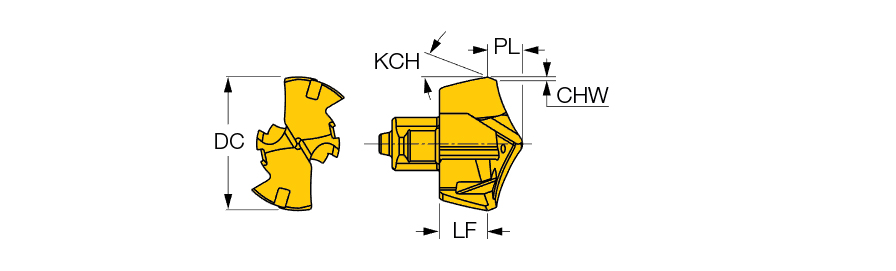

| Cutting Diameter (DC) | 0.445″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.26″ |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.10826″ |
| Grade | IC908 | Point Angle (SIG) | 139 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 11.0 | Corner Chamfer Width (CHW) | 0.019″ |
| Functional Length (LF) | 0.152″ | Chamfer Angle | 30 Degrees |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials. | Country of Origin | Israel |
| Remarks | Advance Self-Centering and high surface finish |
Shipping Info
Package Weight
0.022
