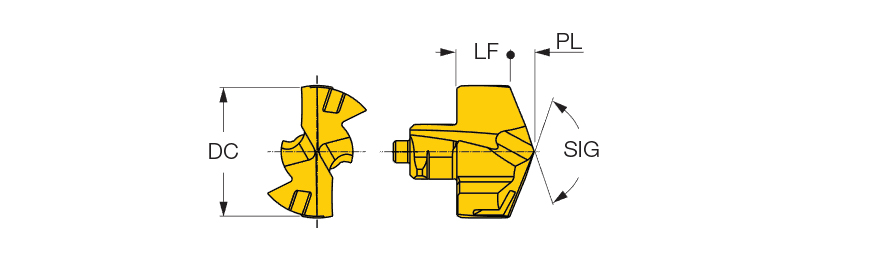

| Cutting Diameter (DC) | 0.65″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.09881″ |
| Grade | IC948 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlCrN |
| Insert Seat Size Code (SSC) | 16.0 | Body Material | Carbide |
| Functional Length (LF) | 0.267″ |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO P materials (non-alloy and carbon steel) | Country of Origin | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.036
Related Documentation
